ORDERING CODE FOR VLT DANFOSS AUTOMATION DRIVES

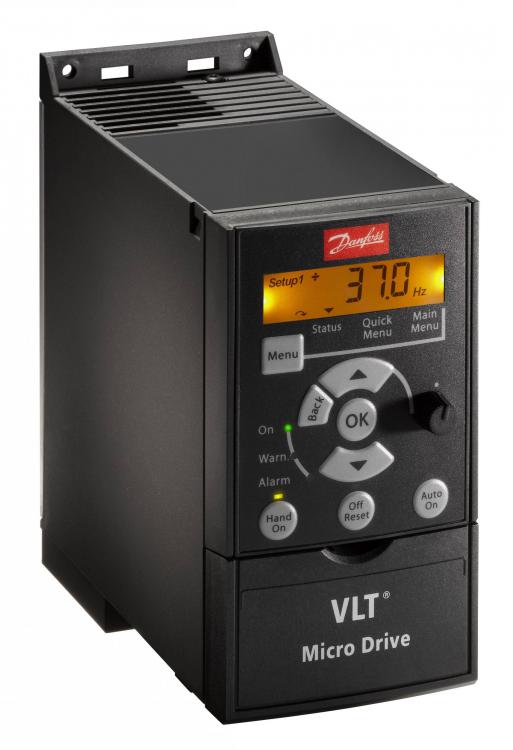

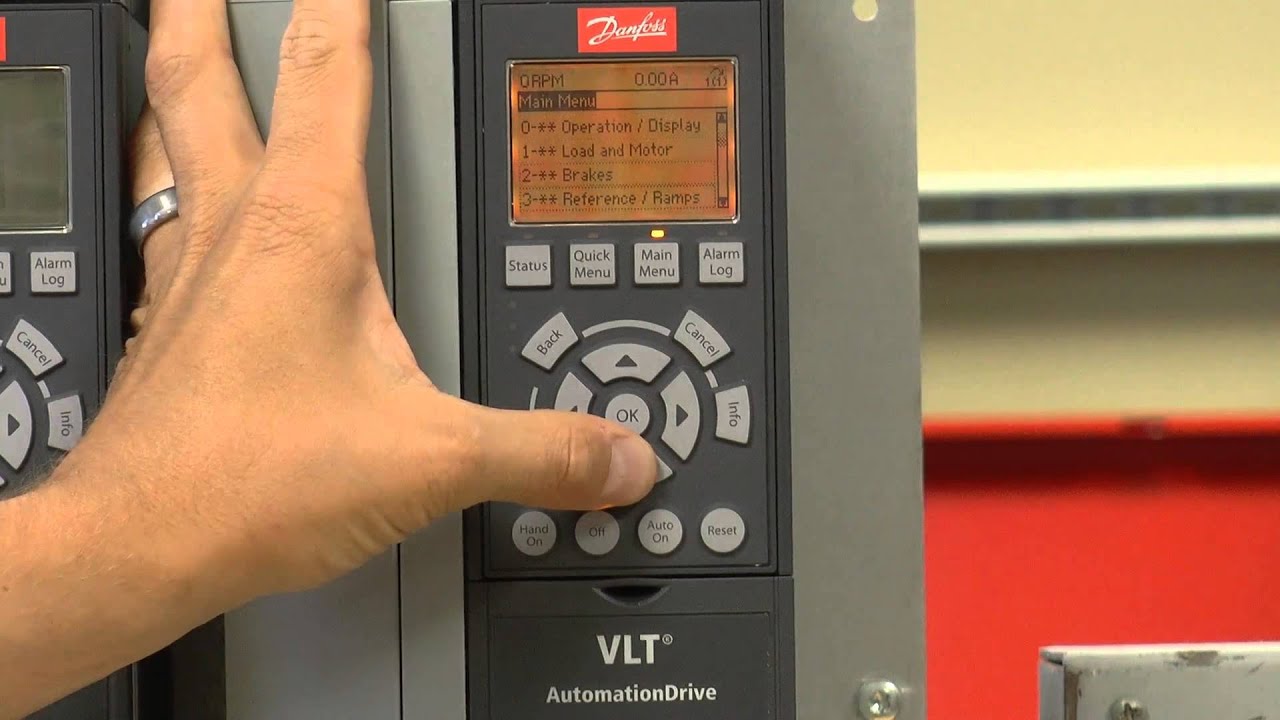

Danfoss VLT Micro Drive

If you have come across a machine electrical panel which requires control of motors there is high probability you have encountered a VLT drive from Danfoss. Danfoss credit themselves as global leaders in the variable control of electric motors and being independent of motor manufacturers as their drives can adapt to any motor technology.

With these drives being a common occurrence in plants and machinery it is important then to know how to place order for a new application or replacement of an existing drive.

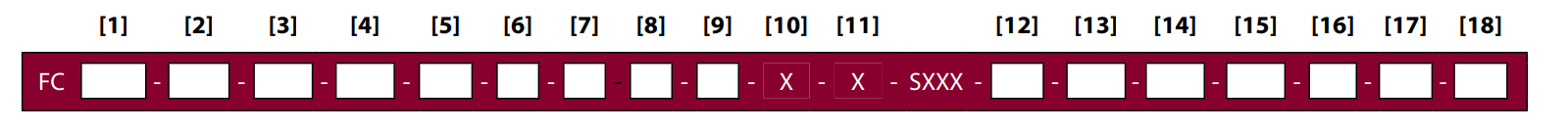

Order code

[1] - Application/ Drive series

301 -VLT Automation drive FC301
302 -VLT Automation drive FC302
322 -VLT Automation drive FC322

[2]- Power Size

0.25- 75kW

[3]-AC Line Voltage

T2- 3 phase 200 -240 VAC
T4- 3 phase 380- 480 VAC (FC 322)
T5- 3 phase 380- 500 VAC (FC 302)
T6- 3 phase 525- 600 VAC (FC 302)
T7- 3 phase 525- 690 VAC

[4]- Enclosure
For cabinet mounting:

E00- IP 00 enclosure
Z20- IP 20 enclosure
E20- IP 20

Standalone:

E21- IP21 NEMA 1
E54- IP54 NEMA 12
E55- IP55
E66- IP66

Special design:

C00- IP00 enclosure
P20- IP20 > E2M- IP21
P21- IP21 > E5M- IP54
P55- IP55

[5]- RFI Filter

H1- RFI filter class A1/B
H2- INo RFI Filter, Class A2
H3- RFI Filter Class A1
H4- RFI Filter, Class A1
H5- RFI Filter for Marine
HE Integral class A2 filter with residual current monitor
HX No RFI Filter (only 600 V)

[6]- Braking & Safety

X- No brake IGBT
B- Brake IGBT mounted
R- Regen Terminals
T- Safe stop without brake
U- With brake and safe stop

[7]- Display ( Local Control Panel)

X- Blank faceplate, no LCP installed
G- LCP 102- Numerical LCP installed
N- LCP 101 Graphic display installed

[8]- Conformal Coating

X- No conformal coating
C- Conformal coating on all PCBs

[9]- Mains Input

X- No option
1- Mains disconnect
3- Mains disconnect & fuses
5- Mains disconnect, fuses and load sharing
7- Fuses
8- Mains disconnect and load sharing
A- Fuses & load sharing
D- Load sharing terminals

[12]- LCP Language Pack

X- Standard language pack

[13]- Fieldbus

AX- No fieldbus option installed
A0- Profibus MCA101 option card
A4- DeviceNet MCA104 option card
A6- CAN Open MCA105 option card
AN- Ethernet IP MCA121 option card
AQ- Modbus TCP/IP MCA 122 option card

[14] Application Option

BX- No application option
B2- PTC thermistor input MCB 112 option card (FC302 only)
BK- General purpose I/O MCB 101 option card
BO- Analog I/O plus battery backup MCB 109 (FC322 only)
BP- Relay expansion MCB105 option card
BR- Encoder input MCB 102 option card
BU- Resolver input MCB103 option card
BY- Extended cascade control MCO 101 '(FC 322 only)
BZ- SAFE PLC interface MCB 108 option card

[15]- Motion Control

CX- No motion control option
C4- Motion control MCO 305 option card

[16]- Motion Control Output

X- No motion control output
5- Advanced cascade control MCO 102 (FC322 only)
R- Extended relay MCB 113 option card (FC302 only)

[17]- Motion Control software

XX- No motion control software
10- Software for synchronizing control MCO 350*
11- Software for positioning control MCO 351*
12- Software for center winding MCO 352*
15- Software for SALT MCO 360*
* Must select C4 in block [15]

[18]- Voltage Input

DX- No DC option installed

D0- 24 Vdc MCB 107 option card

Not all combinations are valid . Consult for valid representative .
